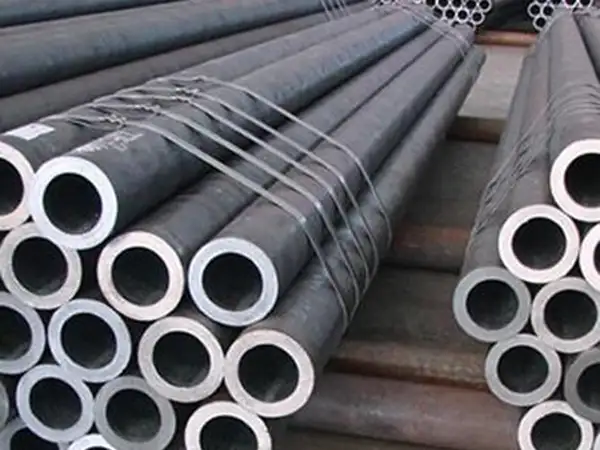

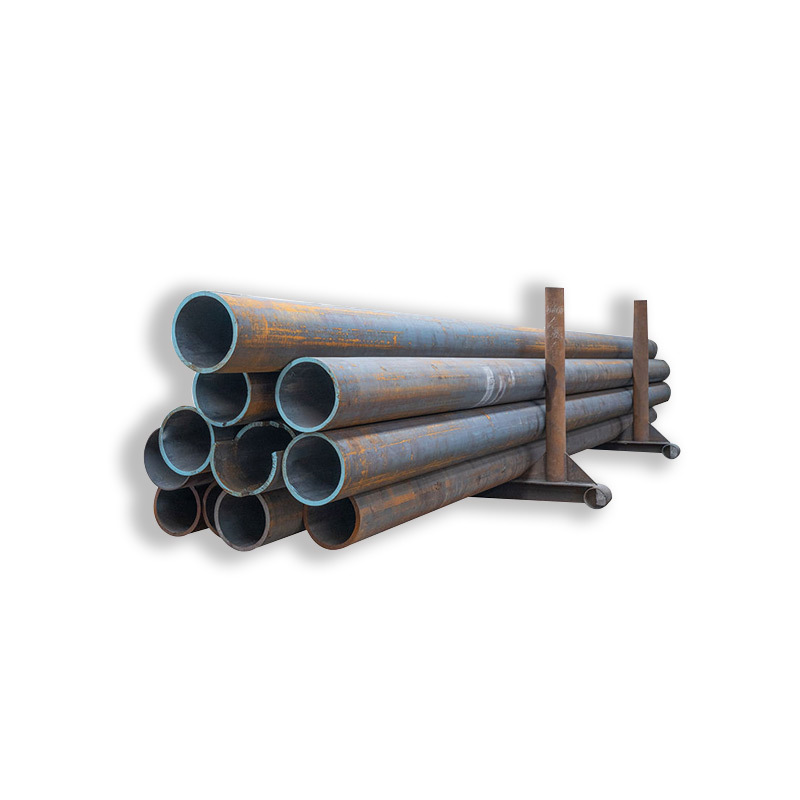

A213 Seamless Carbon Steel Pipe

ASTM A213 designates grades T5, TP304, etc. Grades with the letter H have a higher creep rupture strength than grades without H. ASME SA213 seamless pipe is chrome molybdenum alloy pipe. ASTM A192 is the same as ASME SA-192 and is the standard specification covering seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure service.

Classification :

Carbon Steel Pipe

+86-15666972378

E-mail

sales03@sdyxsteel.com

A213 Seamless Carbon Steel Pipe Description

Product Parameters

Product Name	A213 Seamless Carbon Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

A213	C	Si	Mn	P,S Max	Cr	Mo	V	Al Max	Nb
T2	0.10~0.20	0.10~0.30	0.30~0.61	0.025	0.50~0.81	0.44~0.65	-	-	-
T11	0.05~0.15	0.50~1.00	0.30~0.60	0.025	1.00~1.50	0.44~0.65	-	-	-
T12	0.05~0.15	Max 0.5	0.30~0.61	0.025	0.80~1.25	0.44~0.65	-	-	-
T22	0.05~0.15	Max 0.5	0.30~0.60	0.025	1.90~2.60	0.87~1.13	-	-	-
T91	0.07~0.14	0.20~0.50	0.30~0.60	0.02	8.0~9.5	0.85~1.05	0.18~0.25	0.015	0.06~0.10
T92	0.07~0.13	Max 0.5	0.30~0.60	0.02	8.5~9.5	0.30~0.60	0.15~0.25	0.015	0.04~0.09

Mechanical Properties

A213	Tensile Strength	Yield Strength	Elongation	Hardness
T2	≥ 415MPa	≥ 205MPa	≥30%	163HBW(85HRB)
T11	≥ 415MPa	≥ 205MPa	≥30%	163HBW(85HRB)
T12	≥ 415MPa	≥ 220MPa	≥30%	163HBW(85HRB)
T22	≥ 415MPa	≥ 205MPa	≥30%	163HBW(85HRB)
T91	≥ 585MPa	≥ 415MPa	≥ 20%	250HBW(25HRB)
T92	≥ 620MPa	≥ 440MPa	≥ 20%	250HBW(25HRB)

Scope of Application

Seamless ferritic and austenitic steel boilers, boiler tubes and heat exchanger tubes for high temperature service.

USA	Japan	Germany		U.K.		France	Italy	Spain	Switzerland	China
AISI/SAE	JIS	W‐nr.	DIN	BS	EN	AFNOR	UNI	UNE	SS	GB
A570.36	STKM 12A	1.0038	RSt.37‐2	4360	‐	E 24‐2	‐	‐	1311	15
-	STKM 12C	-	-	40 C	-	Ne	-	-	-	-
1015	‐	1.0401	C15	080M15	‐	CC12	C15, C16	F.111	1350	15
1020	‐	1.0402	C22	050A20	2C	CC20	C20, C21	F.112	1450	20
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	F.2111	1912	Y15
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	11SMn28	1912	Y15
12L13	SUM22L	1.0718	9SMnPb28	‐	‐	S250Pb	CF9SMnPb28	11SMnPb28	1914	‐
‐	‐	1.0722	10SPb20	‐	‐	10PbF2	CF10Pb20	10SPb20	‐	‐
1215	‐	1.0736	9SMn36	240M07	1B	S300	CF9SMn36	12SMn35	‐	Y13
12L14	‐	1.0737	9SMnPb36	‐	‐	S300PB	CF9SMnPb36	12SMnP35	1926	‐
1015	S15C	1.1141	Ck15	080M15	32C	XC12	C16	C15K	1370	15
1025	S25C	1.1158	Ck25	‐	‐	‐	‐	‐	‐	25
A572-60	‐	1.890	StE380	4360 55	‐	‐	FeE390KG	‐	2145	‐
1035	‐	1.0501	C35	060A35	‐	CC35	C35	F.113	1550	35
1045	‐	1.0503	C45	080M46	‐	CC45	C45	F.114	1650	45
1140	‐	1.0726	35S20	212M36	8M	35MF4	‐	F210G	1957	‐
1039	‐	1.1157	40Mn4	150M36	15	35M5	‐	‐	‐	40Mn
1335	SMn438(H)	1.1167	36Mn5	‐	‐	40M5	‐	36Mn5	2120	35Mn2
1330	SCMn1	1.1170	28Mn6	150M28	14A	20M5	C28Mn	‐	‐	30Mn
1035	S35C	1.1183	Cf35	060A35	‐	XC38TS	C36	‐	1572	35Mn
1045	S45C	1.1191	Ck45	080M46	‐	XC42	C45	C45K	1672	Ck45
1050	S50C	1.1213	Cf53	060A52	‐	XC48TS	C53	‐	1674	50
1055	‐	1.0535	C55	070M55	9	‐	C55	‐	1655	55
1060	‐	1.0601	C60	080A62	43D	CC55	C60	‐	‐	60
1055	S55C	1.1203	Ck55	070M55	‐	XC55	C50	C55K	‐	55
1060	S58C	1.1221	Ck60	080A62	43D	XC60	C60	‐	1678	60Mn
1095	‐	1.1274	Ck101	060A96	‐	XC100	‐	F.5117	1870	‐
W1	SK3	1.1545	C105W1	BW1A	‐	Y105	C36KU	F.5118	1880	‐
W210	SUP4	1.1545	C105W1	BW2	‐	Y120	C120KU	F.515	2900	‐

Product Details

The company has rich experience and resources in overseas trade, and its products are exported to Europe, America, Asia and other countries and regions. The annual export volume exceeds US$50 million, accounting for more than 50% of the company's total sales.

Application Field

Customer Visit

COOPERATIVE PARTNER

Factory Workshop

FAQ

Q:What product information do I need to provide?

A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q: Do you provide samples ? is it free or extra ?

A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.

Q:How to pack the products?

A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: Do you accept the third party inspection?

A: Yes absolutely we accept.

Q:How about MOQ?

A:The minimum order quantity is 3 Ton, which can be customized according to customer requirements.

Carbon Steel Pipe
