Spiral Submerged Arc Welded Pipe SSAW

The spiral submerged arc welded pipe is made of hot-rolled steel strip as raw material, and is usually made by constant temperature spiral forming and automatic submerged arc welding. The manufacturing process is to roll the steel strip, make the rolling direction at a certain angle to the center direction of the tube, and then form and weld, so the weld is spiral. Can provide API SPEC 5L steel pipe, GB / T3091,GB / T9711-2011,EN10219,ASTM A252 standard steel pipe.

Classification :

Carbon Steel Pipe

+86-15666972378

E-mail

sales03@sdyxsteel.com

Spiral Submerged Arc Welded Pipe SSAW Description

Product Parameters

Product Name	Spiral Submerged Arc Welded Pipe SSAW
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	219.1mm-3580mm
Wall Thickness	3.2mm-25.4mm
Length	5.8 meters-12.5 meters, Support customization
Manufacturing Type	Spiral Welding

Product Material

Standard	Material
GB/T3091	Q235B, Q345A, Q345B
GB/T9711-2011	L210, L245, L290, L320, L360, L390, L415, L450, L485
API 5L PSL1	Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
API 5L PSL2	Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
EN10217	P235TR1, P235TR2, P265TR1, P265TR2
ASTM A252	A252 Gr.2 , A252 Gr.3

Chemical Composition & Mechanical Properties

Standard	Grade	Chemical Composition(%)					Mechanical Properties(min)
Standard	Grade	C	Si	Mn	P	S	Tensile Strength(Mpa)	Yield Strength(Mpa)
API 5CT	h40	-	-	-	-	0.030	417	417
	J55	-	-	-	-	0.030	517	517
	K55	-	-	-	-	0.300	655	655
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	335	335
	B	0.26	-	1.20	0.030	0.030	415	415
	X42	0.26	-	1.30	0.030	0.030	415	415
	X46	0.26	-	1.40	0.030	0.030	435	435
	X52	0.26	-	1.40	0.030	0.030	460	460
	X56	0.26	-	1.40	0.030	0.030	490	490
	X60	0.26	-	1.40	0.030	0.030	520	520
	X65	0.26	-	1.45	0.030	0.030	535	535
	X70	0.26	-	1.65	0.030	0.030	570	570
API 5L PSL2	B	0.22	0.45	1.20	0.025	0.015	415	415
	X42	0.22	0.45	1.30	0.025	0.015	415	415
	X46	0.22	0.45	1.40	0.025	0.015	435	435
	X52	0.22	0.45	1.40	0.025	0.015	460	460
	X56	0.22	0.45	1.40	0.025	0.015	490	490
	X60	0.12	0.45	1.60	0.025	0.015	520	520
	X65	0.12	0.45	1.60	0.025	0.015	535	535
	X70	0.12	0.45	1.70	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
ASTM A53	A	0.25	0.10	0.95	0.050	0.045	330	330
ASTM A53	B	0.30	0.10	1.20	0.050	0.045	415	415
ASTM A252	1	-	-	-	0.050	-	345	345
	2	-	-	-	0.050	-	414	414
	3	-	-	-	0.050	-	455	455
EN10217-1	P195TR1	0.13	0.35	0.70	0.025	0.020	320	320
	P195TR2	0.13	0.35	0.70	0.025	0.020	320	320
	P235TR1	0.16	0.35	1.20	0.025	0.020	360	360
	P235TR2	0.16	0.35	1.20	0.025	0.020	360	360
	P265TR1	0.20	0.40	1.40	0.025	0.020	410	410
	P265TR2	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-2	P195GH	0.13	0.35	0.70	0.025	0.020	320	320
	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-5	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
EN10217-5	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10219-1	S235JRH	0.17	-	1.40	0.040	0.040	360	360
	S275JOH	0.20	-	1.50	0.035	0.035	410	410
	S275J2H	0.20	-	1.50	0.030	0.030	410	410
	S355JOH	0.22	0.55	1.60	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.60	0.030	0.030	470	470
	S355K2H	0.22	0.55	1.60	0.030	0.030	470	470

Scope of Application

Petroleum and natural gas industry, chemical industry, power industry, flammable liquid and incombustible liquid pipeline and building structure, water supply and drainage engineering, urban construction.

USA	Japan	Germany		U.K.		France	Italy	Spain	Switzerland	China
AISI/SAE	JIS	W‐nr.	DIN	BS	EN	AFNOR	UNI	UNE	SS	GB
A570.36	STKM 12A	1.0038	RSt.37‐2	4360	‐	E 24‐2	‐	‐	1311	15
-	STKM 12C	-	-	40 C	-	Ne	-	-	-	-
1015	‐	1.0401	C15	080M15	‐	CC12	C15, C16	F.111	1350	15
1020	‐	1.0402	C22	050A20	2C	CC20	C20, C21	F.112	1450	20
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	F.2111	1912	Y15
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	11SMn28	1912	Y15
12L13	SUM22L	1.0718	9SMnPb28	‐	‐	S250Pb	CF9SMnPb28	11SMnPb28	1914	‐
‐	‐	1.0722	10SPb20	‐	‐	10PbF2	CF10Pb20	10SPb20	‐	‐
1215	‐	1.0736	9SMn36	240M07	1B	S300	CF9SMn36	12SMn35	‐	Y13
12L14	‐	1.0737	9SMnPb36	‐	‐	S300PB	CF9SMnPb36	12SMnP35	1926	‐
1015	S15C	1.1141	Ck15	080M15	32C	XC12	C16	C15K	1370	15
1025	S25C	1.1158	Ck25	‐	‐	‐	‐	‐	‐	25
A572-60	‐	1.890	StE380	4360 55	‐	‐	FeE390KG	‐	2145	‐
1035	‐	1.0501	C35	060A35	‐	CC35	C35	F.113	1550	35
1045	‐	1.0503	C45	080M46	‐	CC45	C45	F.114	1650	45
1140	‐	1.0726	35S20	212M36	8M	35MF4	‐	F210G	1957	‐
1039	‐	1.1157	40Mn4	150M36	15	35M5	‐	‐	‐	40Mn
1335	SMn438(H)	1.1167	36Mn5	‐	‐	40M5	‐	36Mn5	2120	35Mn2
1330	SCMn1	1.1170	28Mn6	150M28	14A	20M5	C28Mn	‐	‐	30Mn
1035	S35C	1.1183	Cf35	060A35	‐	XC38TS	C36	‐	1572	35Mn
1045	S45C	1.1191	Ck45	080M46	‐	XC42	C45	C45K	1672	Ck45
1050	S50C	1.1213	Cf53	060A52	‐	XC48TS	C53	‐	1674	50
1055	‐	1.0535	C55	070M55	9	‐	C55	‐	1655	55
1060	‐	1.0601	C60	080A62	43D	CC55	C60	‐	‐	60
1055	S55C	1.1203	Ck55	070M55	‐	XC55	C50	C55K	‐	55
1060	S58C	1.1221	Ck60	080A62	43D	XC60	C60	‐	1678	60Mn
1095	‐	1.1274	Ck101	060A96	‐	XC100	‐	F.5117	1870	‐
W1	SK3	1.1545	C105W1	BW1A	‐	Y105	C36KU	F.5118	1880	‐
W210	SUP4	1.1545	C105W1	BW2	‐	Y120	C120KU	F.515	2900	‐

Product Details

The company has rich experience and resources in overseas trade, and its products are exported to Europe, America, Asia and other countries and regions. The annual export volume exceeds US$50 million, accounting for more than 50% of the company's total sales.

Application Field

Customer Visit

COOPERATIVE PARTNER

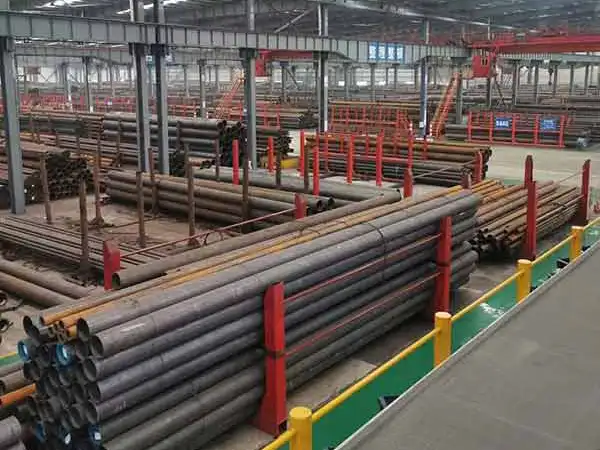

Factory Workshop

FAQ

Q:What product information do I need to provide?

A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q:Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q: Do you provide samples ? is it free or extra ?

A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.

Q:How to pack the products?

A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: Do you accept the third party inspection?

A: Yes absolutely we accept.

Q:How about MOQ?

A:The minimum order quantity is 3 Ton, which can be customized according to customer requirements.
